3.5. Nacelle
3.5.1. Flow through nacelle
Codes:
nacelle-axisymmetric.py
Generate 3D surfaces of an axisymmetric flow through nacelle (FTN).
Use the Lofting_Revolution class
to generate the surface of rotation.
The result is shown in Figure 3.5.1.

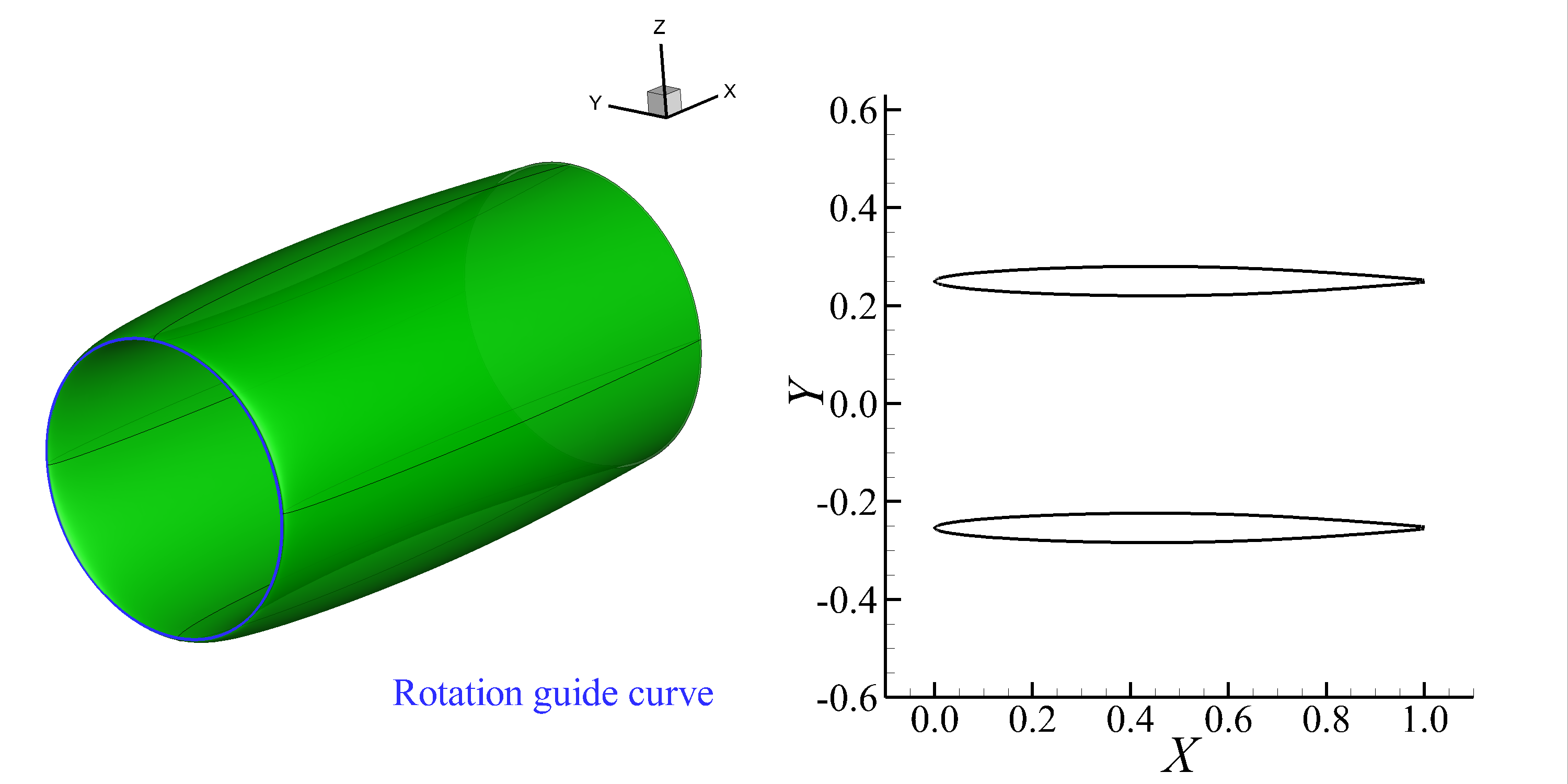

Figure 3.5.1 Flow through nacelle
3.5.2. Powered engine nacelle
Codes:
nacelle-non-axisymmetric.py
Generate 3D surfaces of a non-axisymmetric powered engine nacelle (PEN).
Use the NacelleIntakeHighlight class
to generate the nacelle intake highlight curve.
Use the PoweredNacelleProfile class
to generate the nacelle profile.
The axisymmetric PEN is shown in Figure 3.5.2, the non-axisymmetric PENs are shown in Figure 3.5.3 and Figure 3.5.4.

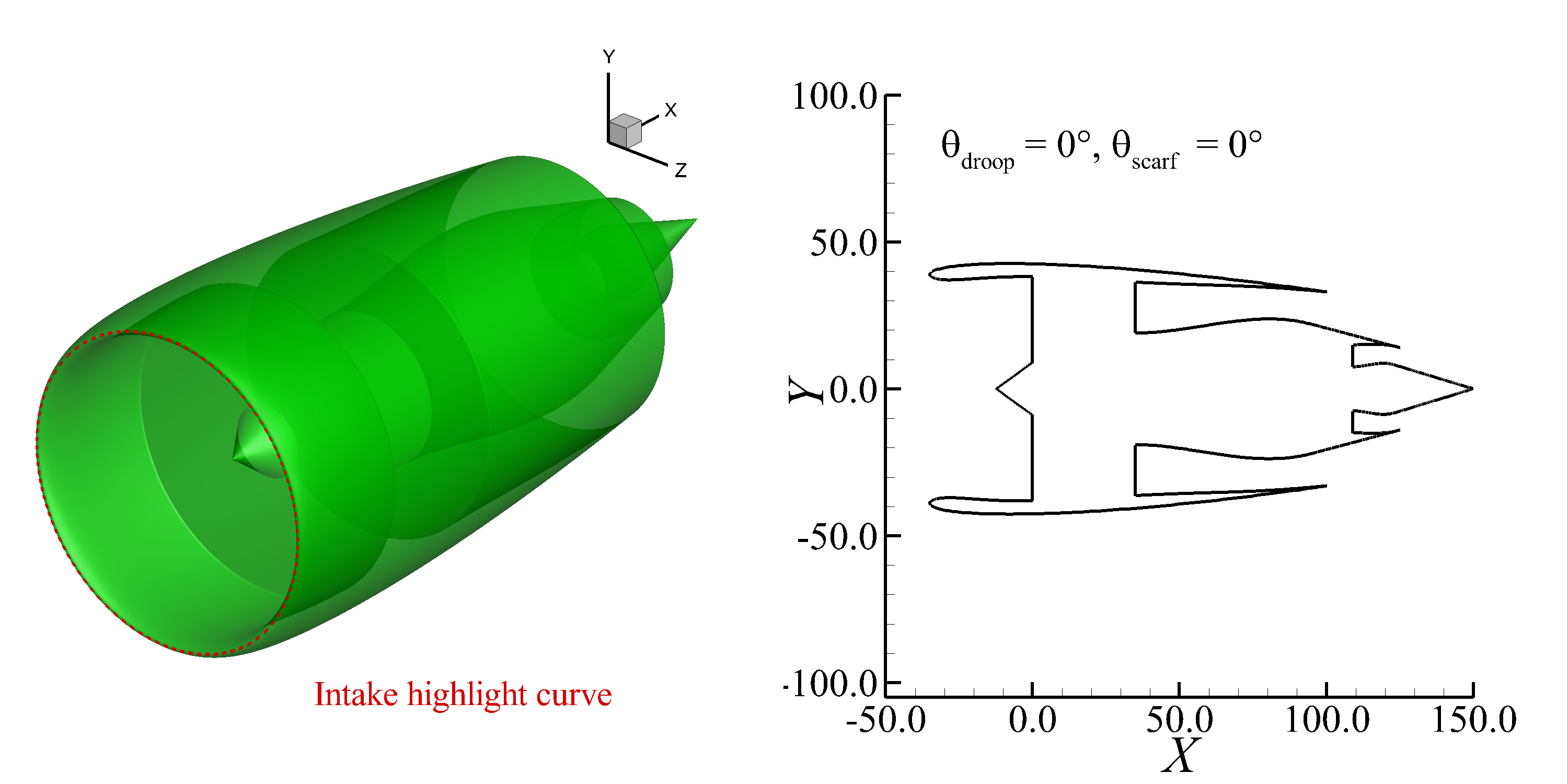

Figure 3.5.2 Powered engine nacelle (axisymmetric)

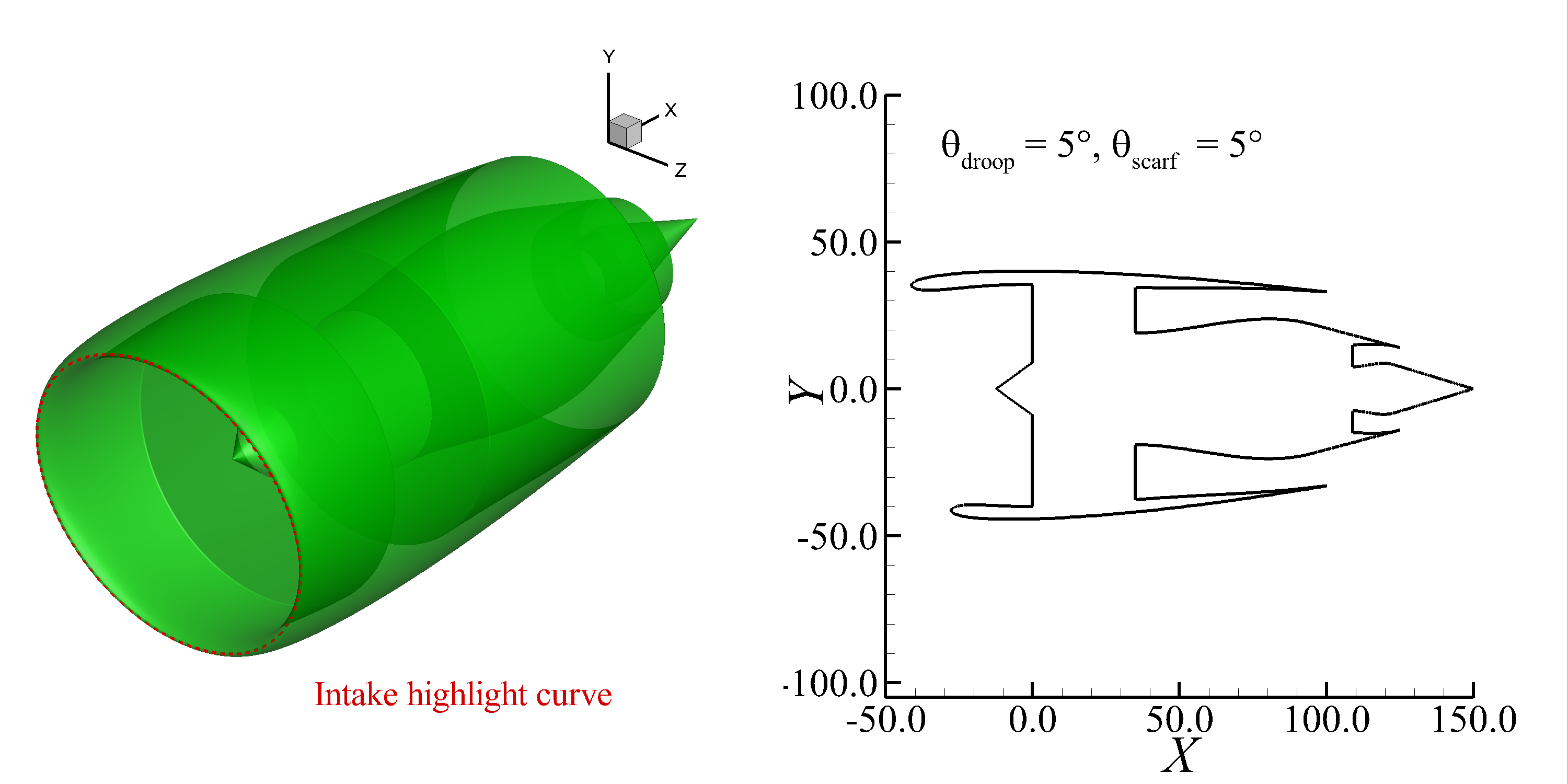

Figure 3.5.3 Powered engine nacelle (non-axisymmetric)

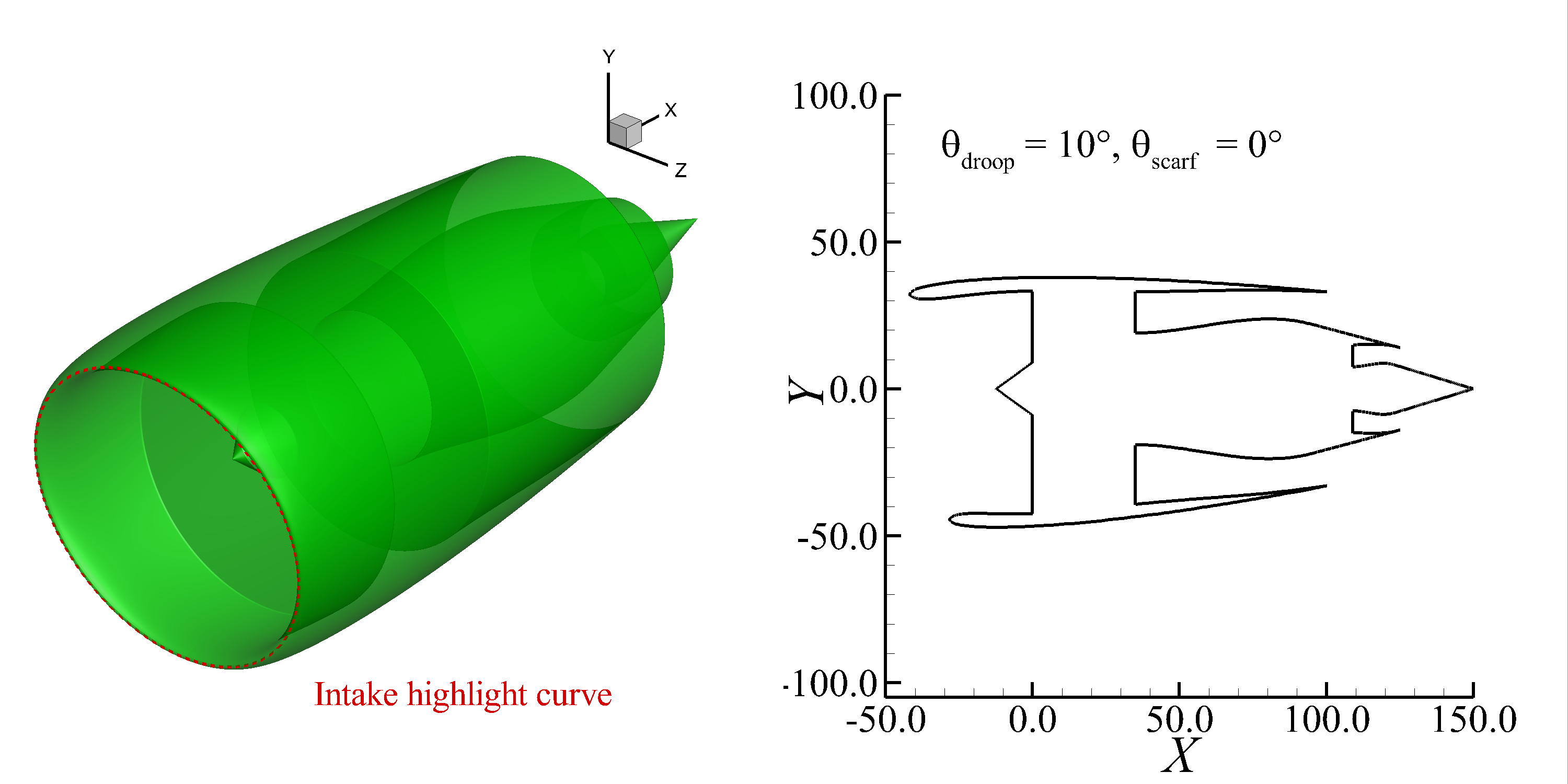

Figure 3.5.4 Powered engine nacelle (non-axisymmetric)

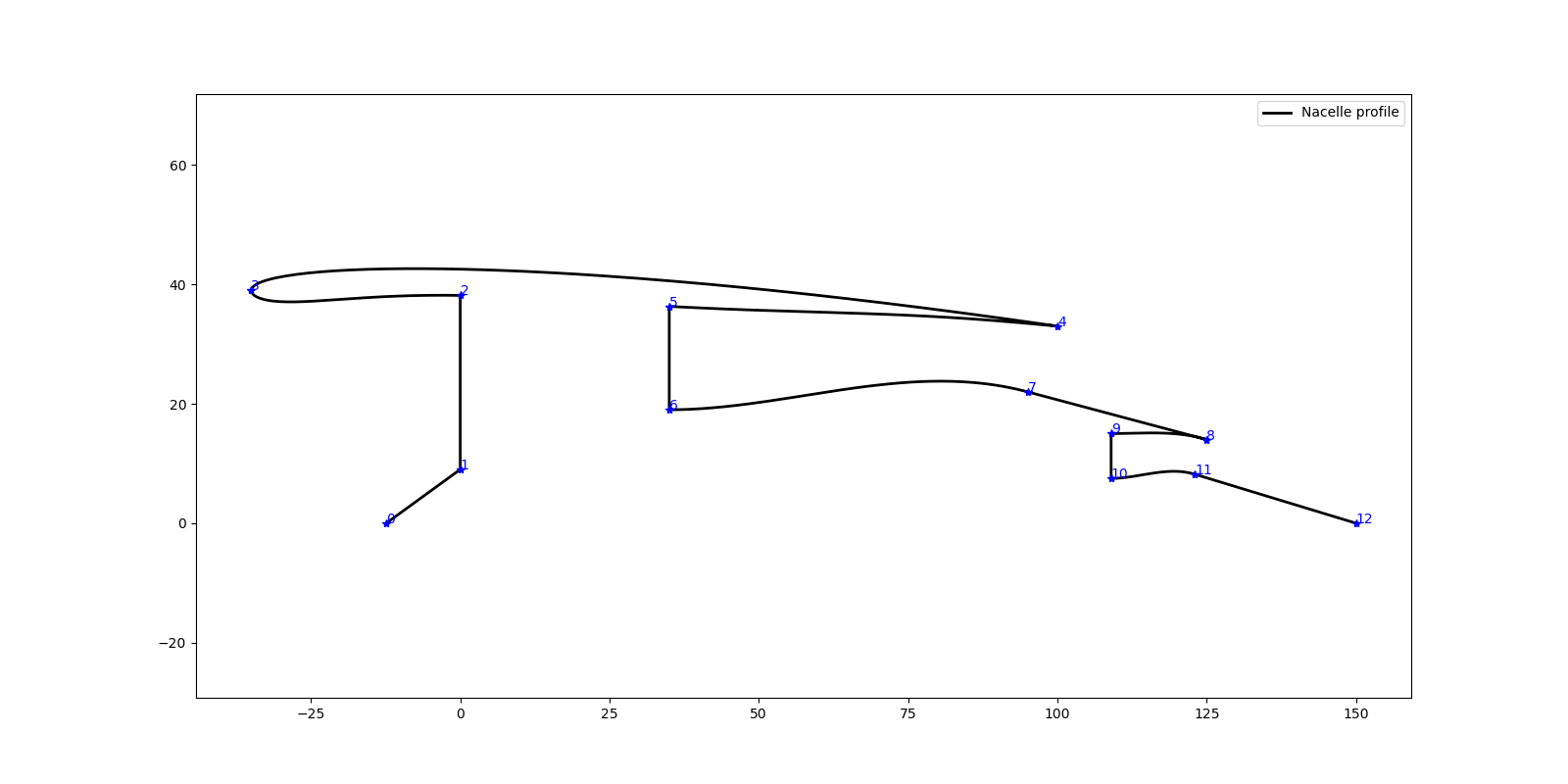

The segment points of the powered engine nacelle profile are shown in Figure 3.5.5.
Figure 3.5.5 Powered engine nacelle profile and segment points
